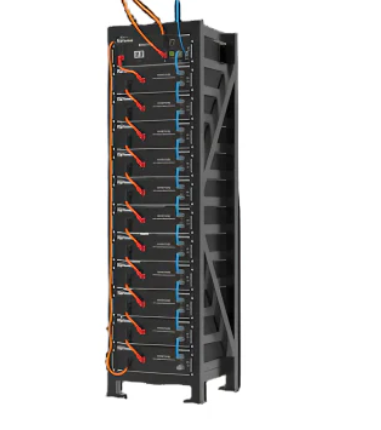

Dyness PowerRack HV4 Battery HV51100:

PowerRack HV4 series features a rack-mount structure design that is ideal for medium-sized industrial and commercial applications.  Its supports up to 12 cluster of parallel machines with a maximum expansion capacityof 921kWh. This effectively enhances PV consumption, provides backup power or peak shifting to ensure the safe and stable operation of the system.

Model: HV51100

Battery Type: LifePO*

Nominal Battery Energy: 5.12kWh

Nominal Capacity: 100Ah

Nominal Voltage: 51.2V

Net weight: 43.5Kg

Dimension(W/D/H):  481/535/140mm

Charging Temp. Range:  0-55°C

Discharging Temp. Range: -20-55°

Communication:  CAN

Cycle Life*:  6000 Cycles

Protection Level:  IP20

Expansion:  Up to 15 Units in series

Compatible Inversters:  GoodWe/Solis/SAJ/Sinexcel/Hoymiles/Growatt/Ecatus/Sermatec/ATESS/Sunways etc.

Certification& Safety Standard:  UN38.3/CE-EMC
